Single Phase – Large kVA

Product Range – 500 kVA to 2500 kVA
Primary Voltage – from 4160 volts (60 KV BIL) to 46,000 (250 KV BIL)
Secondary Voltage – from 277 to 12470 volts

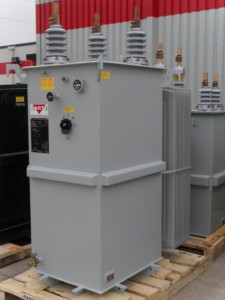

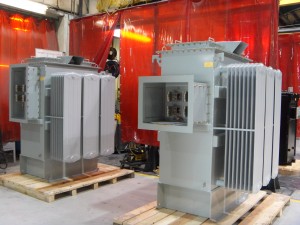

Carte makes a range of large single phase transformers for Utility and Industrial applications.  These transformers are mounted on platforms or at ground level in secure locations. Many possible configurations are possible and retrofit applications to meet existing throat height dimensions are common.  Bushings may be distribution class or power class bushings, meeting the bushing interchangeability requirements of IEEE or CSA.
