Single Phase Polemount

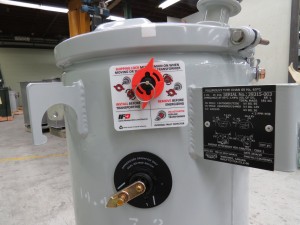

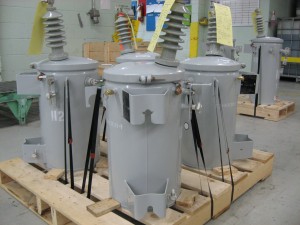

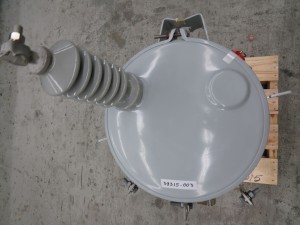

IMG_1724IMG_2044[1] IMG_2043[1]

Product Range – 1 kVA to 500 kVA
Primary Voltage – from 600 volts (30 KV BIL) to 46,000 (250 KV BIL)
Secondary Voltage – from 120 to 600 volts.

Standard & optional features include –
– all Carte overhead transformers up to 333 kVA feature a fully interleaved secondary winding, providing superior short circuit withstand capability.

– non-standard kVA sizes are possible.
– electrical grade mineral oil or environmental friendly vegetable FR3 Fluid (Cargill)
– built to meet CSA or IEEE technical standards and energy efficiency requirements
– high voltage taps
– dual voltage with taps (some configurations may have proportional taps)

– triple voltage design possible for some voltage combinations
– lightning arrester provision or with arresters installed

– Completely self-protected polemounts are available
